Solving LinkedIn Tango by Linear Optimization

How to Play Tango¶

Objective

Fill all the squares on the board with moons 🌙 and suns ☀️.

Rules

The number of moons and suns in each row and column must be the same

There cannot be more than 2 moons or 2 suns in a row, either in a row or column

squares separated by the = sign must contain the same symbol

squares separated by the × sign must contain opposite symbols

Problem Modeling¶

To formulate our LOP, it will again be necessary to define the following elements:

• Ranges

• Sets

• Decision variables

• Parameters

• Objective function

• Constraints

Ranges¶

$I = \{1, \cdots, n\}$

The row range, where $n$ is the total number of rows in the grid

$J = \{1, \cdots, m\}$

The column range, where $n$ is the total number of columns in the grid

Sets¶

In the case of the Tango game, in addition to the row and column ranges, it will be necessary to consider the sets of pairs of squares with = and × signs, in addition to the set of squares already filled with a sun or moon symbol. Therefore, there will be:

$H = I \times J = \{(i, j) \mid \forall i \in I, \forall j \in J\}$

Set of all board squares $(i, j)$, which is simply the Cartesian product of the ranges $I$ and $J$.

$L = \{(v, w) \mid v, w \in H, v \ne w\}$

Set of pairs of squares separated by =.

$O = \{(v, w) \mid v, w \in H, v \ne w\}$

Set of pairs of squares separated by ×.

$K \subset H$

Set of squares with an already filled symbol.

Decision Variables¶

As it was the case with the Queens game, the decision variables here will be binary, since Tango only uses two symbols. Because of this, the LOP is a BLOP. Thus, it was agreed that:

$x_{ij} \in \{0,1\}, \forall (i,j) \in H$

$x_{ij} = 1$, if the square in row $i$ and column $j$ will be filled with a 🌙

$x_{ij} = 0$, if the same square will be filled with a ☀️

Parameters¶

Parameters, unlike the decision variables, are constant values that represent fixed or known values that don’t change while the optimization process is running. In case of the Tango, there may be some cells that already come with a predefined symbol: sun or moon. As the set of parameters in our model, there will be:

$k_{ij} \in \{0,1\}, \forall (i,j) \in K$

$k_{ij} = 1$, if the square in row $i$ and column $j$ is already filled with a 🌙

$k_{ij} = 0$, if the same square is already filled with a ☀️

Objective Function¶

Again, as in the case of Queens, our objective is not to optimize a function, but rather to find a solution that fulfills all the rules of the game. Therefore, the Tango PPLB is not an optimization problem, but a feasibility problem. Thus, the objective function will be to maximize (or minimize) an arbitrary constant $C$.

Constraints¶

With the previous elements well defined, we can translate the rules of the game to our BLOP as follows:

Binarity Constraints

First, we must define that all decision variables in our problem are binary variables, that is, they only accept 0 and 1 as the only possible values.

$$x_{ij} \in \{0,1\}, \forall (i,j) \in H$$

(2)

Equal-Moons-Suns-Per-Row Constraints

Since the number of suns and moons for each row must be equal, the sum of $x_{ij}$ belonging to a row $i$ must equal the half of total columns, therefore 3. Since there are 6 rows, the model will have 6 of these constraints.

$$\sum_{j=1}^{m}{x_{ij}}=\frac{m}{2}, \forall i \in I$$

(3)

Equal-Moons-Suns-Per-Column Constraints

The same logic applies to the columns. Therefore, there are 6 more constraints.

$$\sum_{i=1}^{n}{x_{ij}}=\frac{n}{2}, \forall j \in J$$

(4)

No-Three-Consecutive-Moons-Per-Row Constraints

Since the 3 moons in a row cannot be next to each other, it means that the sum of three consecutive $x_{ij}$ in a row must be less than or equal to 2.

$$x_{ij} + x_{i,j+1} + x_{i,j+2} \le 2, \forall i \in I, \forall j \in \{1, \cdots, m-2\}$$

(5)

No-Three-Consecutive-Moons-Per-Column Constraints

And the same logic applies to the columns.

$$x_{ij} + x_{i+1,j} + x_{i+2,j} \le 2, \forall i \in \{1, \cdots, n-2\}, \forall j \in J$$

(6)

No-Three-Consecutive-Suns-Per-Row Constraints

Similarly, since there cannot be 3 consecutive suns in a row, the sum of 3 subsequent $x_{ij}$ in a row i must be greater than or equal to 1.

$$x_{ij} + x_{i,j+1} + x_{i,j+2} \ge 1, \forall i \in I, \forall j \in \{1, \cdots,m-2\}$$

(7)

No-Three-Consecutive-Suns-Per-Column Constraints

And the same logic applies to the columns.

$$x_{ij} + x_{i+1,j} + x_{i+2,j} \ge 1, \forall i \in \{1, \cdots, n-2\}, \forall j \in J$$

(8)

Already-Filled-squares Constraints

For each square that already has a pre-established figure, it is necessary to impose that $x_{ij}$ is equal to 1 or 0, depending on whether the figure is a moon or a sun, respectively.

$$x_{ij} = k_{ij}, \forall k_{ij} \in K$$

(9)

Like-Pairs Constraints

For each pair of adjacent cells that contains the = sign between them, it is necessary to impose the constraint that the values $x_{ij}$ of that pair are equal, which is the same as saying that the difference between the values $x_{ij}$ of that pair must be equal to 0.

$$x_v - x_w = 0, \forall \{v,w\} \in N$$

(10)

Opposite-Pairs Constraints

Finally, for each pair of adjacent cells that contains the sign × between them, it is necessary to impose the constraint that the values $x_{ij}$ of this pair are different, which is the same as saying that the sum of the values $x_{ij}$ of this pair must be equal to 1.

$$x_v + x_w = 1, \forall \{v,w\} \in M$$

(11)

Abstract Model¶

Up to this point, the formulas created have been based on the premise that every Tango minigame will have 6 rows and 6 columns, which is indeed the case. However, in order to create a more generalized abstract model, we can admit that this will not always be a certainty, and therefore there is a possibility that the number of rows and columns will vary from game to game. Due to the restriction that the number of moons and suns for each row and column must be equal, it must be assumed that the total number of rows and columns are even numbers, that is, $n \mod 2 \equiv 0$ and $m \mod 2 \equiv 0$.

Thus, having raised these points, the abstract model of the Tango minigame is formulated as follows:

Concrete Model¶

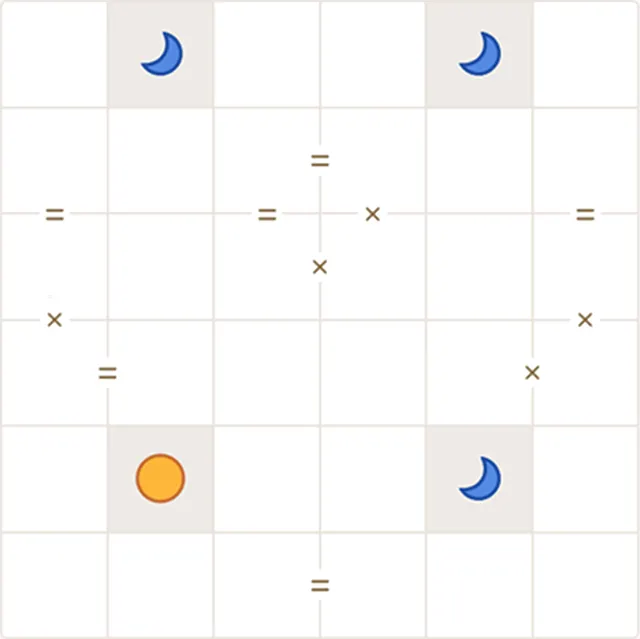

The concrete model was built based on the Tango minigame No. 151

S.t.:

Equal-Moons-Suns-Per-Row Constraints

$x_{11} + x_{12} + x_{13} + x_{14} + x_{15} + x_{16} = 3$ _{(Row 1)}

$x_{21} + x_{22} + x_{23} + x_{24} + x_{25} + x_{26} = 3$ _{(Row 2)}

$x_{31} + x_{32} + x_{33} + x_{34} + x_{35} + x_{36} = 3$ _{(Row 3)}

$x_{41} + x_{42} + x_{43} + x_{44} + x_{45} + x_{46} = 3$ _{(Row 4)}

$x_{51} + x_{52} + x_{53} + x_{54} + x_{55} + x_{56} = 3$ _{(Row 5)}

$x_{61} + x_{62} + x_{63} + x_{64} + x_{65} + x_{66} = 3$ _{(Row 6)}

Equal-Moons-Suns-Per-Column Constraints

$x_{11} + x_{21} + x_{31} + x_{41} + x_{51} + x_{61} = 3$ _{(Column 1)}

$x_{12} + x_{22} + x_{32} + x_{42} + x_{52} + x_{62} = 3$ _{(Column 2)}

$x_{13} + x_{23} + x_{33} + x_{43} + x_{53} + x_{63} = 3$ _{(Column 3)}

$x_{14} + x_{24} + x_{34} + x_{44} + x_{54} + x_{64} = 3$ _{(Column 4)}

$x_{15} + x_{25} + x_{35} + x_{45} + x_{55} + x_{65} = 3$ _{(Column 5)}

$x_{16} + x_{26} + x_{36} + x_{46} + x_{56} + x_{66} = 3$ _{(Column 6)}

No-Three-Consecutive-Moons-Per-Row Constraints

$x_{11} + x_{21} + x_{31} \le 2$ _{(Row 1)}

$x_{12} + x_{13} + x_{14} \le 2$ _{(Row 1)}

$x_{13} + x_{14} + x_{15} \le 2$ _{(Row 1)}

$x_{14} + x_{15} + x_{16} \le 2$ _{(Row 1)}

$x_{21} + x_{22} + x_{23} \le 2$ _{(Row 2)}

$x_{22} + x_{23} + x_{24} \le 2$ _{(Row 2)}

$x_{23} + x_{24} + x_{25} \le 2$ _{(Row 2)}

$x_{24} + x_{25} + x_{26} \le 2$ _{(Row 2)}

$x_{31} + x_{32} + x_{33} \le 2$ _{(Row 3)}

$x_{32} + x_{33} + x_{34} \le 2$ _{(Row 3)}

$x_{33} + x_{34} + x_{35} \le 2$ _{(Row 3)}

$x_{34} + x_{35} + x_{36} \le 2$ _{(Row 3)}

$x_{41} + x_{42} + x_{43} \le 2$ _{(Row 4)}

$x_{42} + x_{43} + x_{44} \le 2$ _{(Row 4)}

$x_{43} + x_{44} + x_{45} \le 2$ _{(Row 4)}

$x_{44} + x_{45} + x_{46} \le 2$ _{(Row 4)}

$x_{51} + x_{52} + x_{53} \le 2$ _{(Row 5)}

$x_{52} + x_{53} + x_{54} \le 2$ _{(Row 5)}

$x_{53} + x_{54} + x_{55} \le 2$ _{(Row 5)}

$x_{54} + x_{55} + x_{56} \le 2$ _{(Row 5)}

$x_{61} + x_{62} + x_{63} \le 2$ _{(Row 6)}

$x_{62} + x_{63} + x_{64} \le 2$ _{(Row 6)}

$x_{63} + x_{64} + x_{65} \le 2$ _{(Row 6)}

$x_{64} + x_{65} + x_{66} \le 2$ _{(Row 6)}

No-Three-Consecutive-Moons-Per-Column Constraints

$x_{11} + x_{21} + x_{31} \le 2$ _{(Column 1)}

$x_{21} + x_{31} + x_{41} \le 2$ _{(Column 1)}

$x_{31} + x_{41} + x_{51} \le 2$ _{(Column 1)}

$x_{41} + x_{51} + x_{61} \le 2$ _{(Column 1)}

$x_{12} + x_{22} + x_{32} \le 2$ _{(Column 2)}

$x_{22} + x_{32} + x_{42} \le 2$ _{(Column 2)}

$x_{32} + x_{42} + x_{52} \le 2$ _{(Column 2)}

$x_{42} + x_{52} + x_{62} \le 2$ _{(Column 2)}

$x_{13} + x_{23} + x_{33} \le 2$ _{(Column 3)}

$x_{23} + x_{33} + x_{43} \le 2$ _{(Column 3)}

$x_{33} + x_{43} + x_{53} \le 2$ _{(Column 3)}

$x_{43} + x_{53} + x_{63} \le 2$ _{(Column 3)}

$x_{14} + x_{24} + x_{34} \le 2$ _{(Column 4)}

$x_{24} + x_{34} + x_{44} \le 2$ _{(Column 4)}

$x_{34} + x_{44} + x_{54} \le 2$ _{(Column 4)}

$x_{44} + x_{54} + x_{64} \le 2$ _{(Column 4)}

$x_{15} + x_{25} + x_{35} \le 2$ _{(Column 5)}

$x_{25} + x_{35} + x_{45} \le 2$ _{(Column 5)}

$x_{35} + x_{45} + x_{55} \le 2$ _{(Column 5)}

$x_{45} + x_{55} + x_{65} \le 2$ _{(Column 5)}

$x_{16} + x_{26} + x_{36} \le 2$ _{(Column 6)}

$x_{26} + x_{36} + x_{46} \le 2$ _{(Column 6)}

$x_{36} + x_{46} + x_{56} \le 2$ _{(Column 6)}

$x_{46} + x_{56} + x_{66} \le 2$ _{(Column 6)}

No-Three-Consecutive-Suns-Per-Row Constraints

$x_{11} + x_{21} + x_{31} \ge 1$ _{(Row 1)}

$x_{12} + x_{13} + x_{14} \ge 1$ _{(Row 1)}

$x_{13} + x_{14} + x_{15} \ge 1$ _{(Row 1)}

$x_{14} + x_{15} + x_{16} \ge 1$ _{(Row 1)}

$x_{21} + x_{22} + x_{23} \ge 1$ _{(Row 2)}

$x_{22} + x_{23} + x_{24} \ge 1$ _{(Row 2)}

$x_{23} + x_{24} + x_{25} \ge 1$ _{(Row 2)}

$x_{24} + x_{25} + x_{26} \ge 1$ _{(Row 2)}

$x_{31} + x_{32} + x_{33} \ge 1$ _{(Row 3)}

$x_{32} + x_{33} + x_{34} \ge 1$ _{(Row 3)}

$x_{33} + x_{34} + x_{35} \ge 1$ _{(Row 3)}

$x_{34} + x_{35} + x_{36} \ge 1$ _{(Row 3)}

$x_{41} + x_{42} + x_{43} \ge 1$ _{(Row 4)}

$x_{42} + x_{43} + x_{44} \ge 1$ _{(Row 4)}

$x_{43} + x_{44} + x_{45} \ge 1$ _{(Row 4)}

$x_{44} + x_{45} + x_{46} \ge 1$ _{(Row 4)}

$x_{51} + x_{52} + x_{53} \ge 1$ _{(Row 5)}

$x_{52} + x_{53} + x_{54} \ge 1$ _{(Row 5)}

$x_{53} + x_{54} + x_{55} \ge 1$ _{(Row 5)}

$x_{54} + x_{55} + x_{56} \ge 1$ _{(Row 5)}

$x_{61} + x_{62} + x_{63} \ge 1$ _{(Row 6)}

$x_{62} + x_{63} + x_{64} \ge 1$ _{(Row 6)}

$x_{63} + x_{64} + x_{65} \ge 1$ _{(Row 6)}

$x_{64} + x_{65} + x_{66} \ge 1$ _{(Row 6)}

No-Three-Consecutive-Suns-Per-Column Constraints

$x_{11} + x_{21} + x_{31} \ge 1$ _{(Column 1)}

$x_{21} + x_{31} + x_{41} \ge 1$ _{(Column 1)}

$x_{31} + x_{41} + x_{51} \ge 1$ _{(Column 1)}

$x_{41} + x_{51} + x_{61} \ge 1$ _{(Column 1)}

$x_{12} + x_{22} + x_{32} \ge 1$ _{(Column 2)}

$x_{22} + x_{32} + x_{42} \ge 1$ _{(Column 2)}

$x_{32} + x_{42} + x_{52} \ge 1$ _{(Column 2)}

$x_{42} + x_{52} + x_{62} \ge 1$ _{(Column 2)}

$x_{13} + x_{23} + x_{33} \ge 1$ _{(Column 3)}

$x_{23} + x_{33} + x_{43} \ge 1$ _{(Column 3)}

$x_{33} + x_{43} + x_{53} \ge 1$ _{(Column 3)}

$x_{43} + x_{53} + x_{63} \ge 1$ _{(Column 3)}

$x_{14} + x_{24} + x_{34} \ge 1$ _{(Column 4)}

$x_{24} + x_{34} + x_{44} \ge 1$ _{(Column 4)}

$x_{34} + x_{44} + x_{54} \ge 1$ _{(Column 4)}

$x_{44} + x_{54} + x_{64} \ge 1$ _{(Column 4)}

$x_{15} + x_{25} + x_{35} \ge 1$ _{(Column 5)}

$x_{25} + x_{35} + x_{45} \ge 1$ _{(Column 5)}

$x_{35} + x_{45} + x_{55} \ge 1$ _{(Column 5)}

$x_{45} + x_{55} + x_{65} \ge 1$ _{(Column 5)}

$x_{16} + x_{26} + x_{36} \ge 1$ _{(Column 6)}

$x_{26} + x_{36} + x_{46} \ge 1$ _{(Column 6)}

$x_{36} + x_{46} + x_{56} \ge 1$ _{(Column 6)}

$x_{46} + x_{56} + x_{66} \ge 1$ _{(Column 6)}

Like-Pairs Constraints

$x_{23} - x_{24} = 0$

$x_{21} - x_{31} = 0$

$x_{23} - x_{33} = 0$

$x_{26} - x_{36} = 0$

$x_{41} - x_{42} = 0$

$x_{63} - x_{64} = 0$

Opposite-Pairs Constraints

$x_{24} + x_{34} = 1$

$x_{33} + x_{34} = 1$

$x_{36} + x_{46} = 1$

$x_{45} + x_{46} = 1$

Already-Filled-squares Constraints

$x_{12} = 1$

$x_{15} = 1$

$x_{51} = 0$

$x_{55} = 1$

Binarity Constraints

$x_{12} \in \{0,1\}$

$x_{13} \in \{0,1\}$

$x_{14} \in \{0,1\}$

$x_{15} \in \{0,1\}$

$x_{16} \in \{0,1\}$

$x_{21} \in \{0,1\}$

$x_{22} \in \{0,1\}$

$x_{23} \in \{0,1\}$

$x_{24} \in \{0,1\}$

$x_{25} \in \{0,1\}$

$x_{26} \in \{0,1\}$

$x_{31} \in \{0,1\}$

$x_{32} \in \{0,1\}$

$x_{33} \in \{0,1\}$

$x_{34} \in \{0,1\}$

$x_{35} \in \{0,1\}$

$x_{36} \in \{0,1\}$

$x_{41} \in \{0,1\}$

$x_{42} \in \{0,1\}$

$x_{43} \in \{0,1\}$

$x_{44} \in \{0,1\}$

$x_{45} \in \{0,1\}$

$x_{46} \in \{0,1\}$

$x_{51} \in \{0,1\}$

$x_{52} \in \{0,1\}$

$x_{53} \in \{0,1\}$

$x_{54} \in \{0,1\}$

$x_{55} \in \{0,1\}$

$x_{56} \in \{0,1\}$

$x_{61} \in \{0,1\}$

$x_{62} \in \{0,1\}$

$x_{63} \in \{0,1\}$

$x_{64} \in \{0,1\}$

$x_{65} \in \{0,1\}$

$x_{66} \in \{0,1\}$

Solving with Pyomo¶

First of all, let’s import all the required libraries

Solving Tango¶

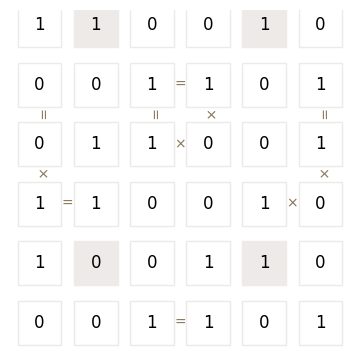

In order to solve a Tango minigame, the solve_tango() function was created, as it follows:

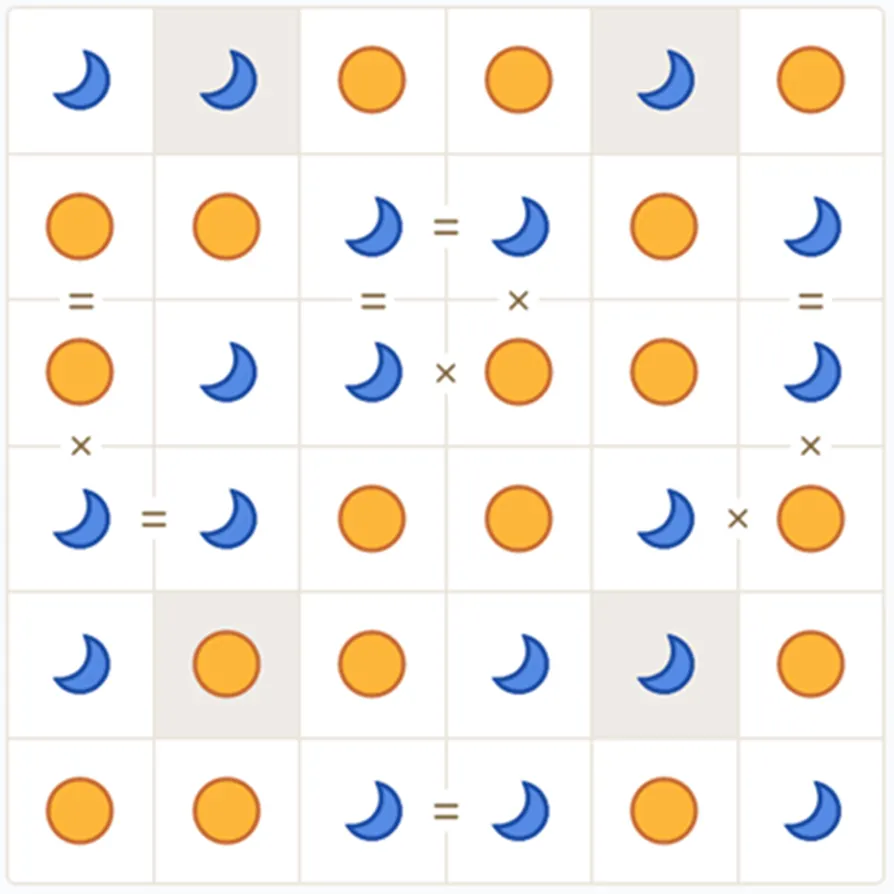

As expected, the image result matches the solution of Tango No. 151

References¶

• BELFIORE, Patrícia; FÁVERO, Luiz Paulo. Pesquisa Operacional: Para cursos de Administração, Contabilidade e Economia. Elsevier Editora Ltda., 2012.

• Tango. LinkedIn. Available at https://www.linkedin.com/games/tango/. Accessed March 7, 2025.
